Elements

O2P1YG ElementData - Hyperelasticity - Yeoh - Mixed Formulation (Augmented)

Initialization

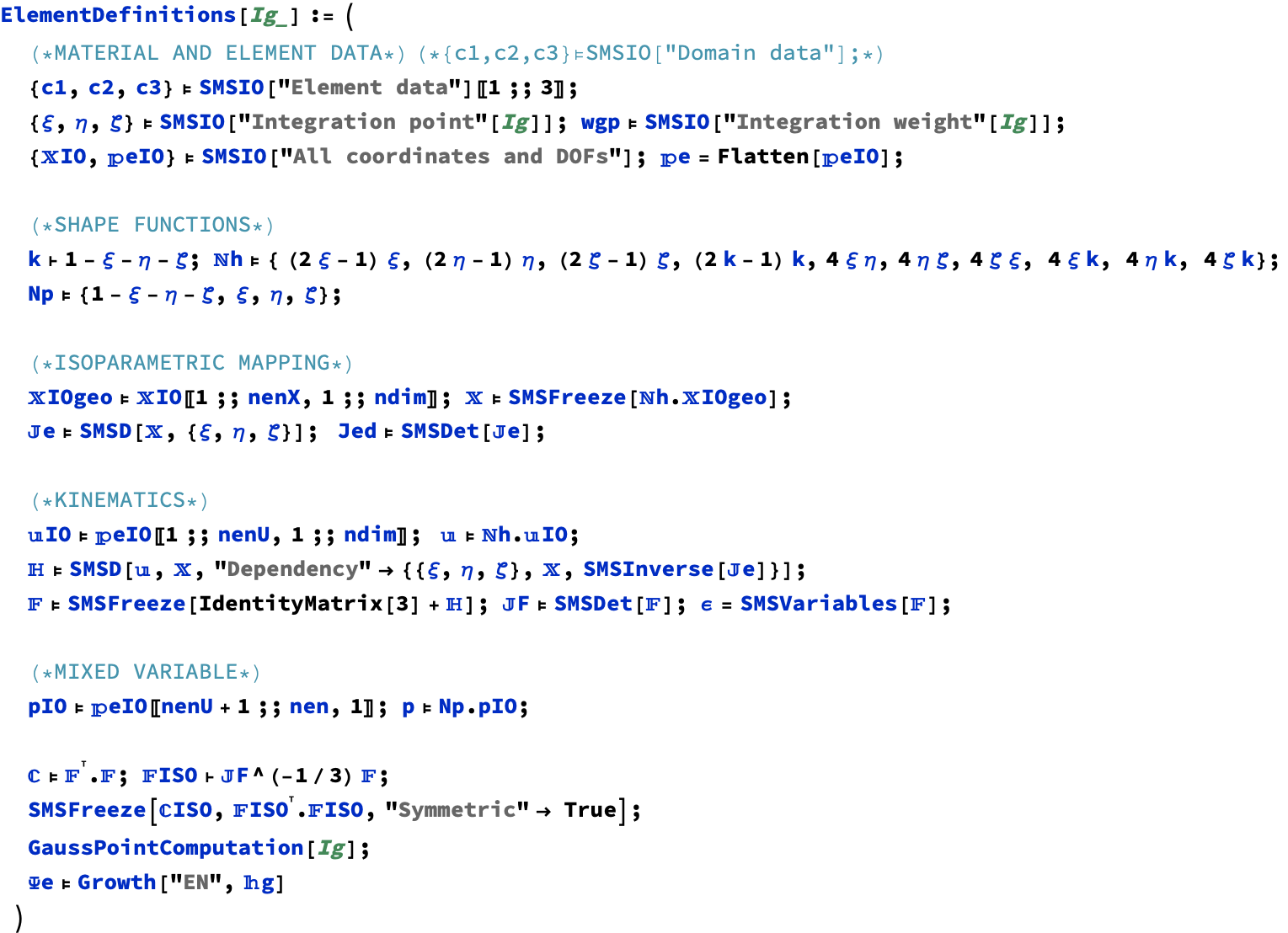

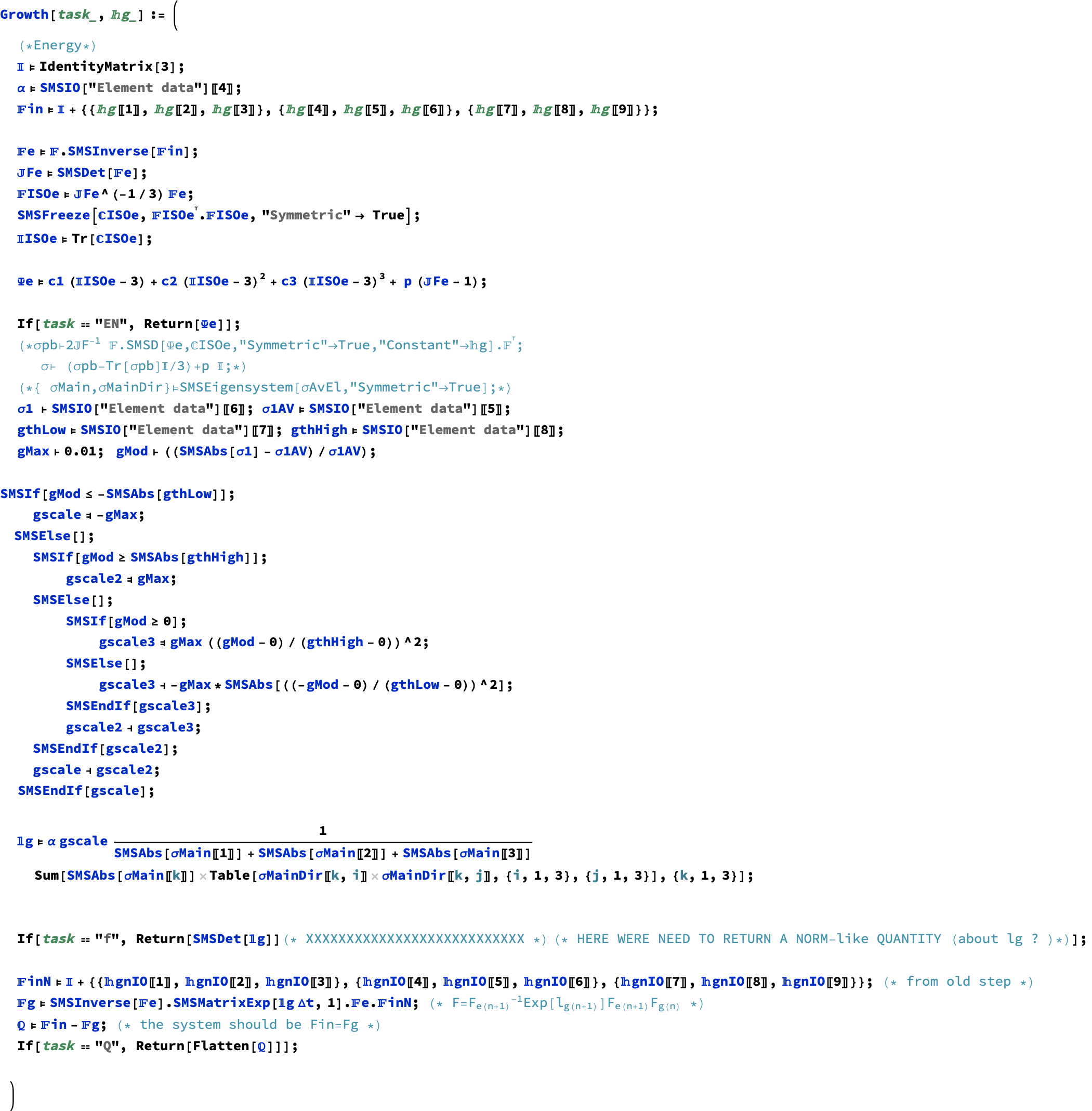

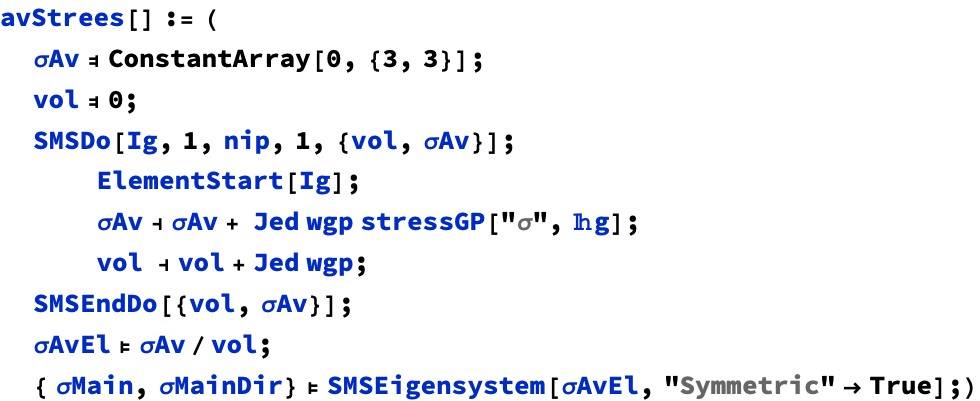

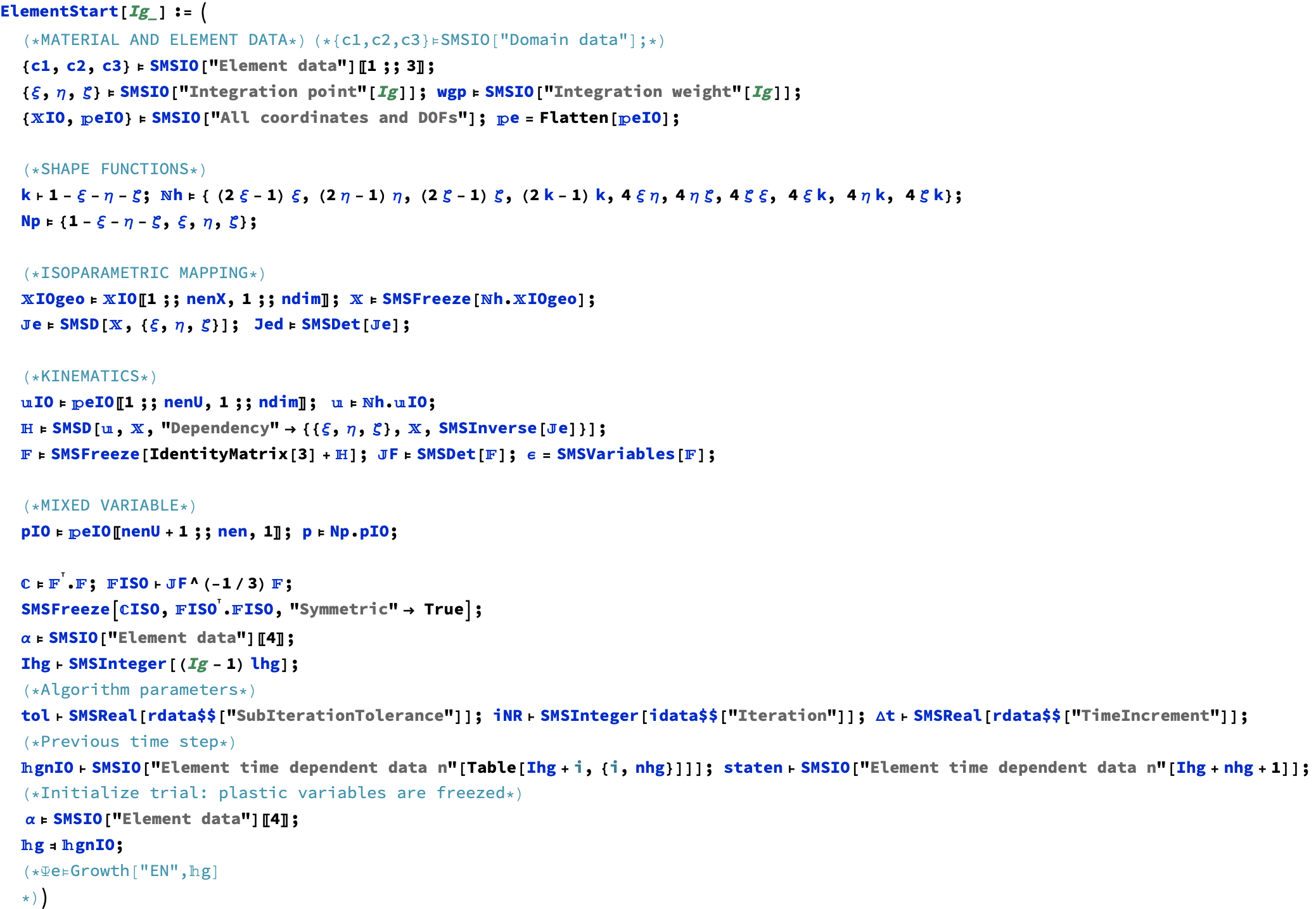

Element definitions

In[47]:=


In[48]:=


In[49]:=


In[50]:=


In[51]:=


In[52]:=

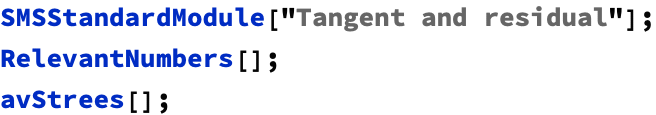

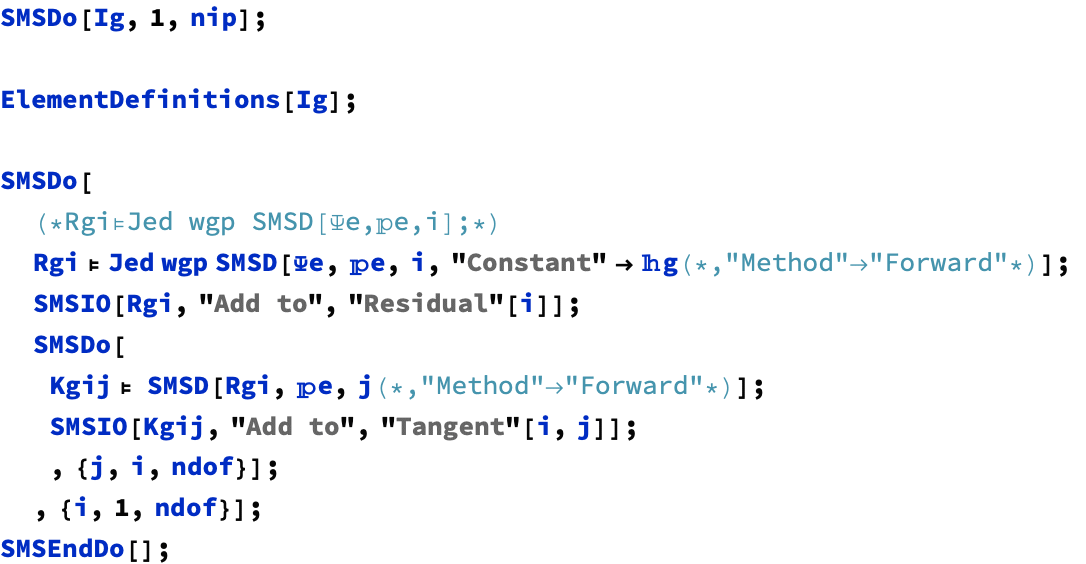

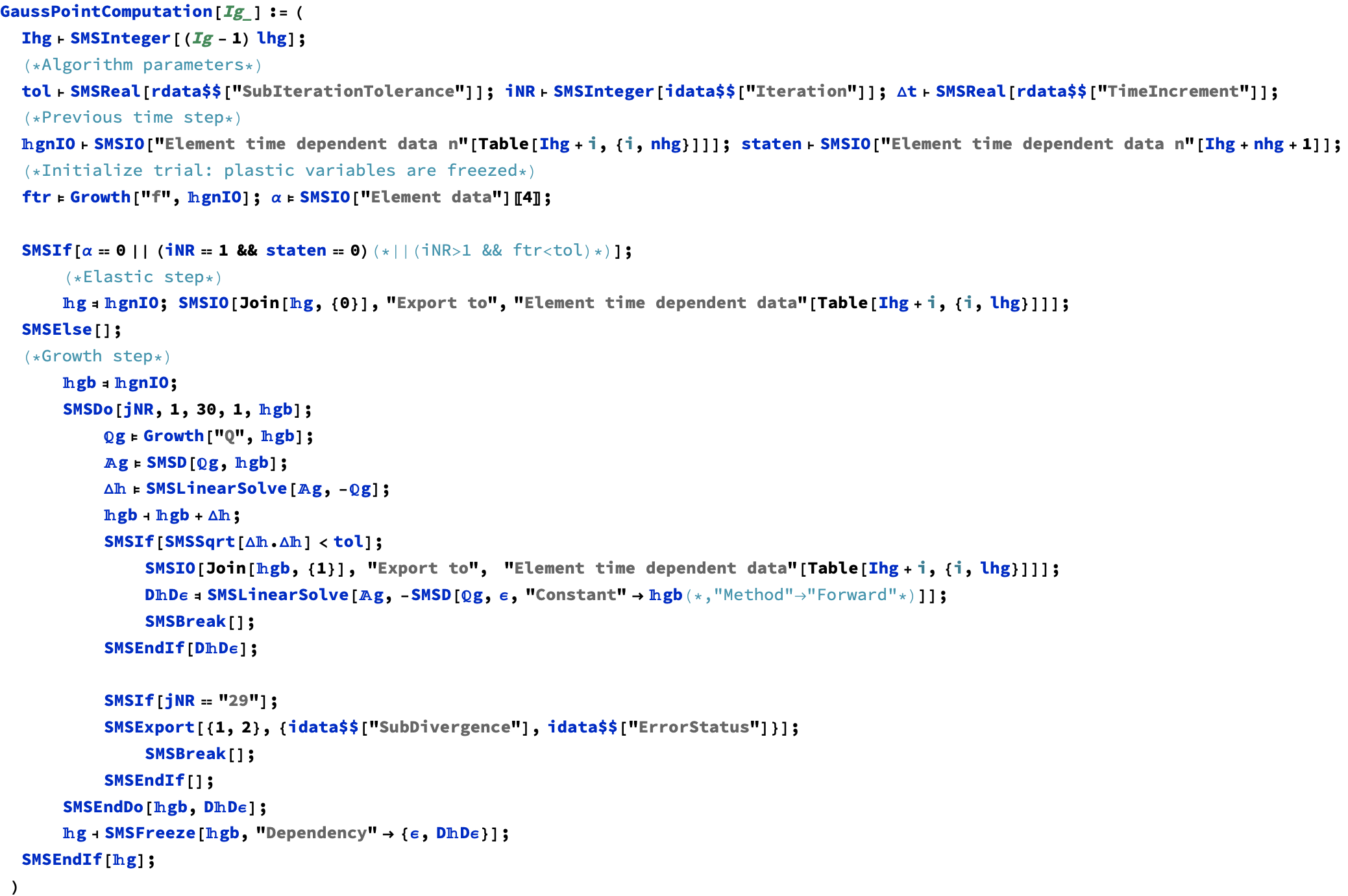

Tangent and Residual

In[53]:=


In[56]:=

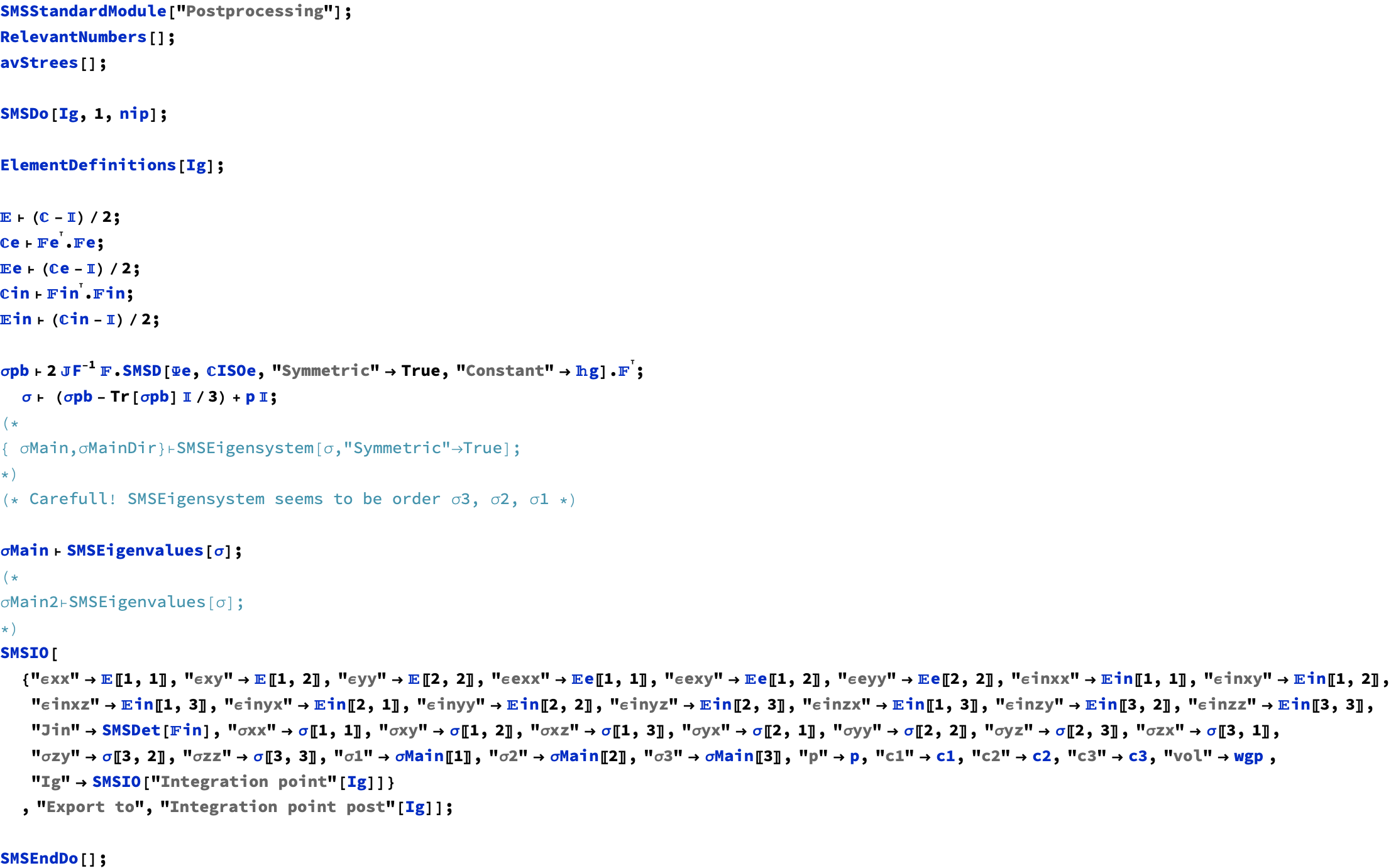

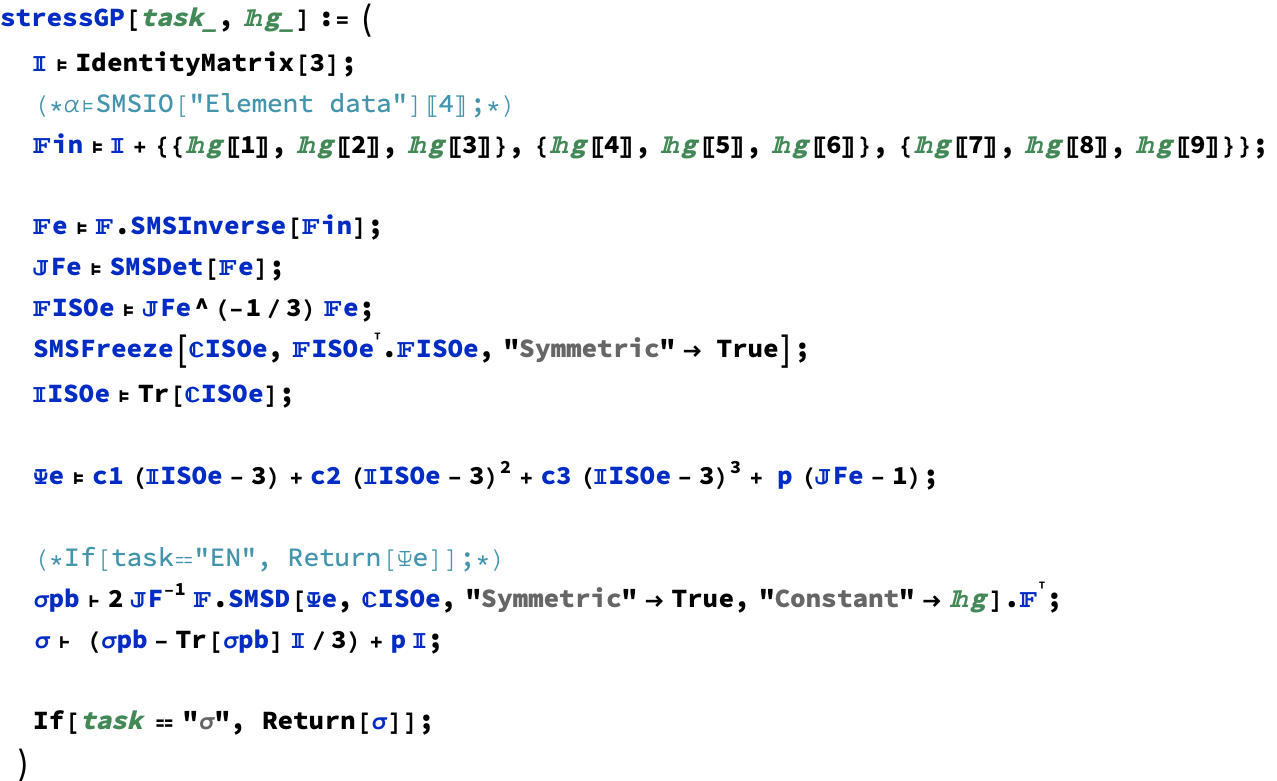

Post-processing

In[60]:=



In[75]:=

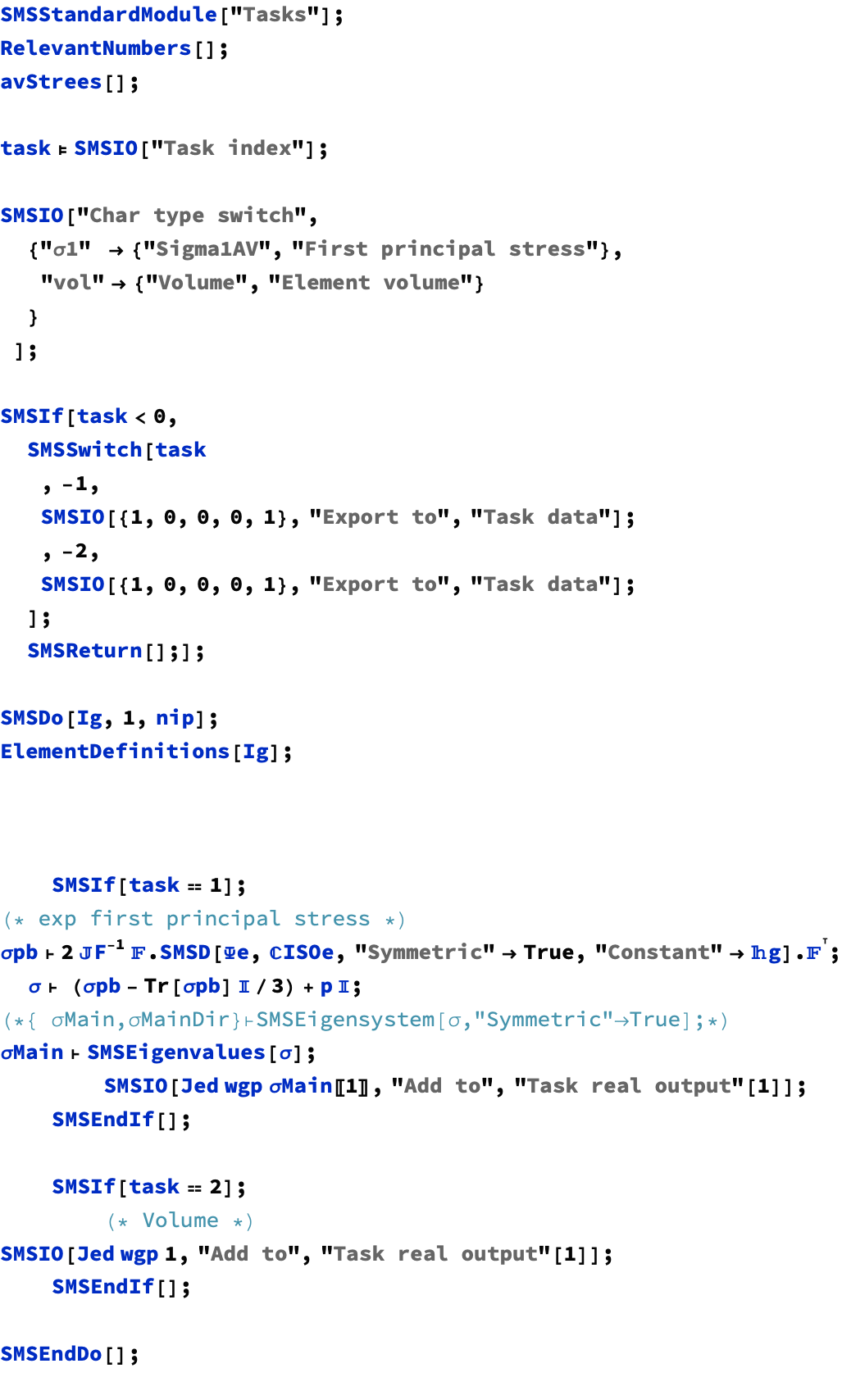

Task

In[77]:=

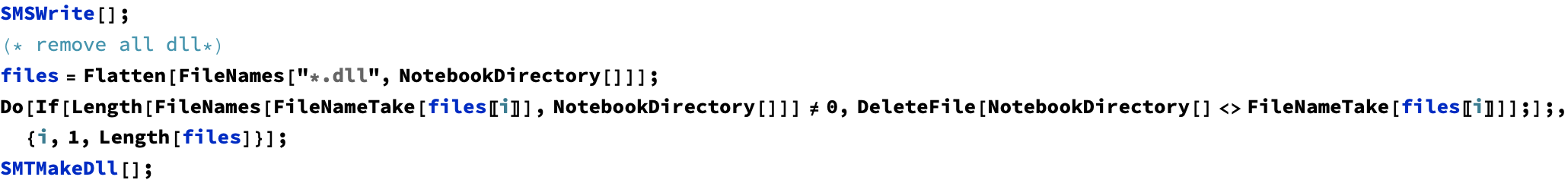

Code generation

In[95]:=
